Karmann Ghia Crashbook Specs

The following are images from Motor's Crashbook for the 1200 and 1300 Ghias. Most, but not all, of the specs are applicable to subsequent years .

Principal Body Dimensions / Weld Seams
Coupe Body Panels
Convertible Body Panels

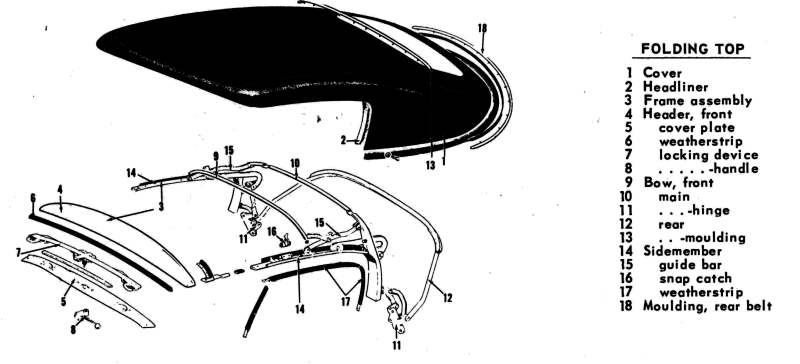

Convertible Top
Molding and Trim


1200 Front Suspension
1300 Front Suspension
Rear Suspension

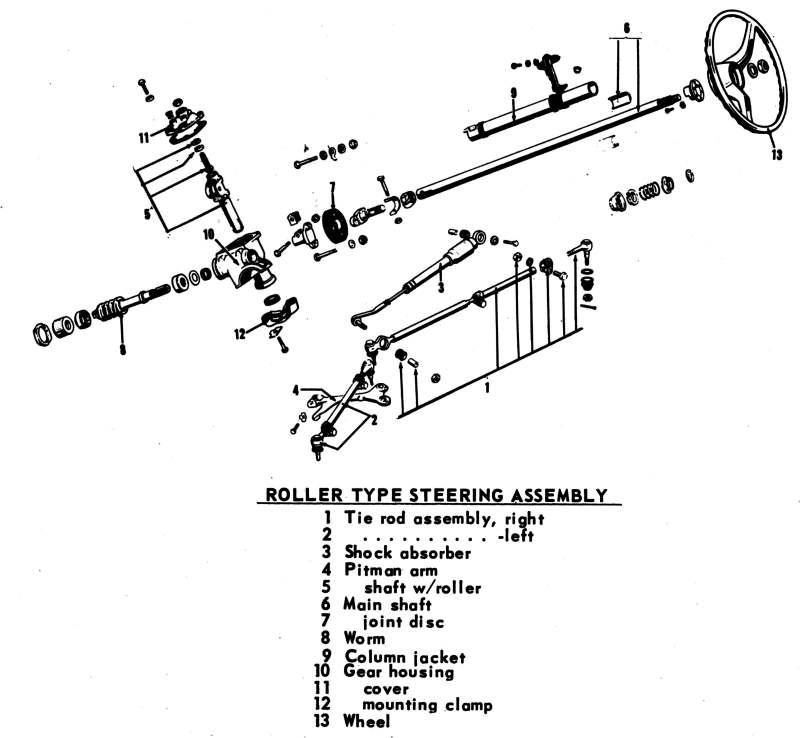

Roller Steering

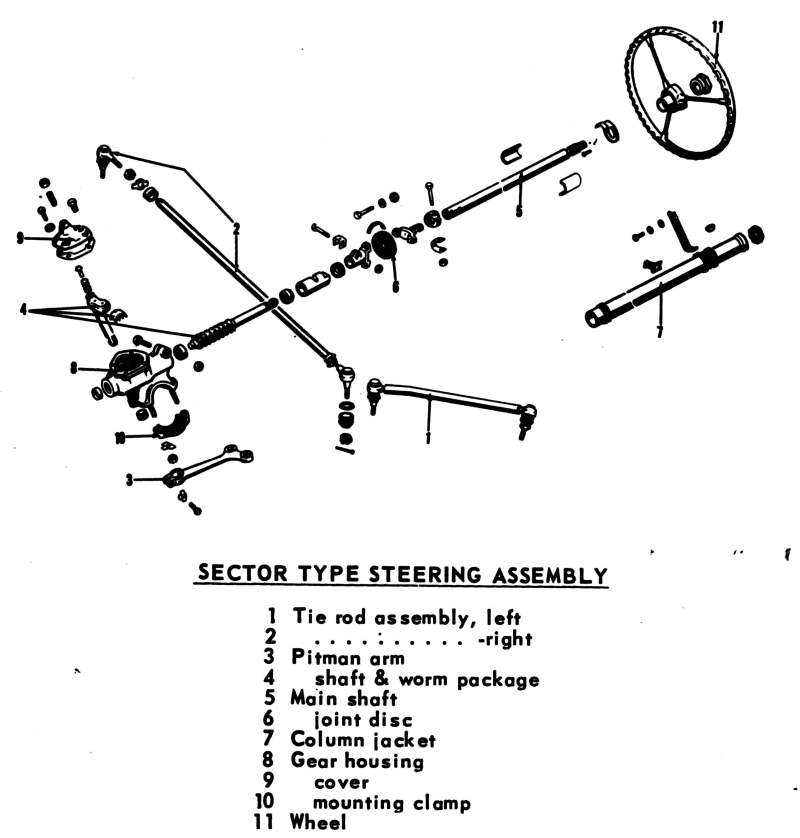

Sector Steering

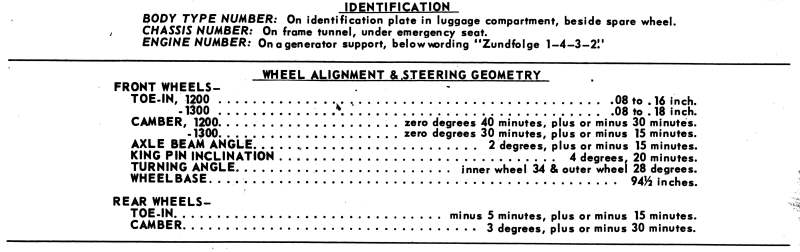

Wheel Alignment

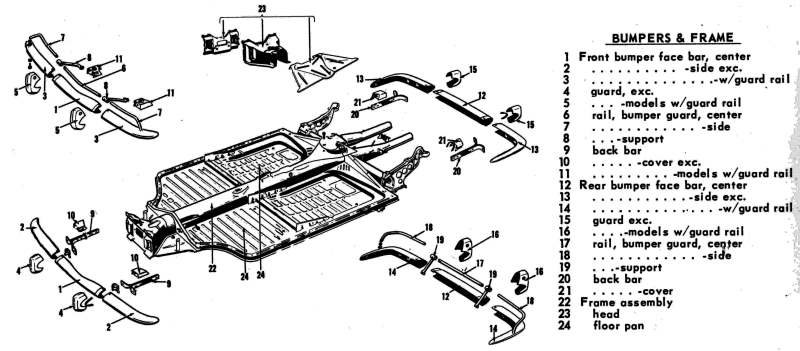

Bumpers and Frame
